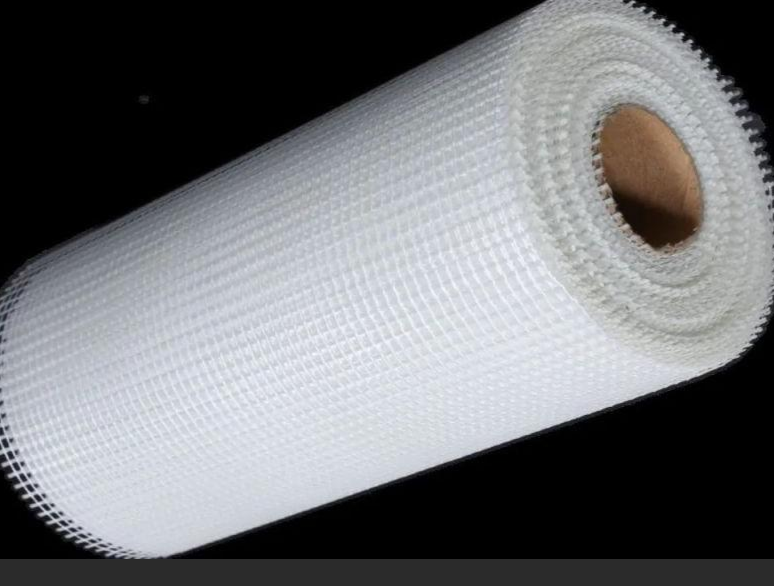

45 GSM Fiber Mesh (45 Grams per Square Meter Fiber Mesh)
A construction reinforcement material made of glass fiber, with a weight of 45 grams per square meter. Widely used for crack prevention in walls and reinforcing insulation systems.
1. Basic Definition & Material Properties
- Grams per Square Meter (GSM): 45 g/m², a lightweight fiber mesh with high tensile strength.
- Material: Typically woven from C-type or E-type glass fiber yarns coated with alkali-resistant resin, offering excellent alkali resistance, corrosion resistance, and aging resistance.
- Structure: Plain-woven or leno-woven design ensures uniform mesh openings, flexibility, and dimensional stability.
2. Core Functions
- Crack Prevention: Distributes stress to prevent cracks in concrete, mortar, or other materials caused by temperature changes, shrinkage, or load stress.
- Insulation System Reinforcement: Enhances the integrity and impact resistance of exterior wall insulation systems (e.g., EPS/XPS boards).
- Corrosion Resistance: Ideal for humid environments (bathrooms, basements) or industrial sites with chemical exposure.
3. Typical Applications
| Application Area | Specific Use |
|---|---|
| Exterior Walls | Reinforces insulation boards (EPS, rock wool) to prevent cracking and detachment. |
| Interior Repairs | Repairs wall cracks, fills holes, and strengthens repair areas. |
| Waterproofing | Acts as a backing material for waterproof coatings or membranes to improve tear resistance. |
| Decorative Material Reinforcement | Secures marble, mosaic, or tiles to prevent detachment and enhance adhesion. |
| Industrial Floors | Strengthens concrete floors to reduce dusting and cracking. |
4. Technical Parameters (Typical Product Example)
| Parameter | Value/Feature |
|---|---|
| Weight | 45 g/m² |
| Mesh Size | 4mm×4mm or 5mm×5mm (customizable based on needs). |
| Tensile Strength | Warp ≥700 N/50mm, Weft ≥650 N/50mm (ensures crack resistance). |
| Temperature Range | -20°C to +80°C (short-term tolerance up to 150°C). |
| Application Method | Apply mortar first, then press mesh firmly with a trowel for full adhesion. |
5. Comparison by Weight Class
- Low GSM (45–80): Lightweight and cost-effective for interior walls or low-strength requirements.
- Mid/High GSM (120–160): Higher strength for exterior insulation systems or high-load areas.
- Ultra-High GSM (≥240): Specialized reinforcement for bridges, industrial structures, etc.
6. Construction Considerations
- Surface Preparation: Ensure walls are smooth, clean, and free of dust. Apply interface agent if needed.
- Cutting & Installation: Trim mesh as required; avoid excessive overlap (≥5cm recommended).
- Curing: Keep the surface moist for 24 hours post-application to prevent cracking.
7. Market Brands & Suppliers
- Domestic Brands: HBGB (Hebei), Taiwen (Hebei), CMAX (Shanghai), offering customizable specs (color, mesh size).
- Certifications: Compliant with GB/T 2991-2020 Test Methods for Reinforcement Materials and industry standards.
