How to use mesh drywall tape?

Introduction to Mesh Drywall Tape

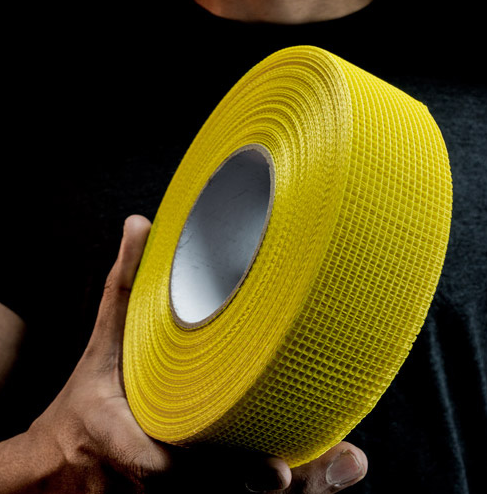

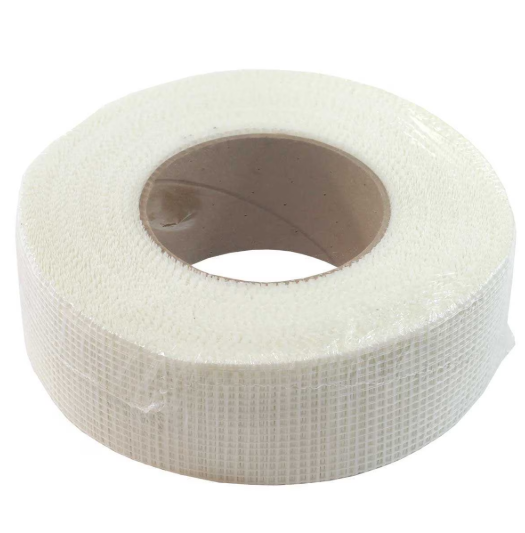

Mesh drywall tape is a critical material in modern wall repair and construction, designed to reinforce seams between drywall panels and prevent cracks. Unlike traditional paper tape, its woven fiberglass structure offers superior durability and adhesion, making it ideal for both interior and semi-humid environments like bathrooms. This 3,000-word guide explores advanced techniques, troubleshooting methods, and industry best practices for achieving professional-grade results.

---

Chapter 1: Pre-Installation Preparation

1.1 Surface Assessment and Cleaning

• ​Wall Inspection: Identify all stress points, including door/window corners, electrical outlet lines, and joints between dissimilar materials (e.g., drywall-to-concrete). Use a 4-foot level to check for existing cracks or unevenness 4.
• ​Deep Cleaning: Remove dust using a microfiber cloth dampened with a pH-neutral cleaner. For oily residues (common in kitchens), apply a degreaser and let sit for 5 minutes before scrubbing.
• ​Moisture Control: Ensure humidity levels remain below 50% during installation. Use dehumidifiers in basements or air conditioners in humid climates.

1.2 Edge and Corner Preparation

• ​Butt Joints: Align panels so gaps measure ≤1/8″. For wider gaps, apply joint compound with a 6″ trowel, feathering edges outward by 2″.
• ​Inside Corners: Create 90° folds in the tape using a utility knife. For precision, mark a 1″ fold line with a carpenter’s square before creasing.
• ​Outside Corners: Install metal corner beads using 1.5″ drywall screws spaced every 8″. Ensure the bead aligns perfectly with adjacent walls.

---

Chapter 2: Tape Application Mastery

2.1 Tape Selection Guide

Tape Type	Thickness	Tensile Strength	Ideal Use Cases
Fiberglass Mesh	12-16 mil	200+ lbs/in	Standard interior seams
Self-Adhesive Fiberglass	10-14 mil	150-180 lbs/in	Quick repairs, DIY projects
Reinforced Paper	18-22 mil	120-150 lbs/in	High-traffic commercial walls

Note: Fiberglass tape outperforms paper in moisture resistance and crack resistance

2.2 Precision Application Workflow

1. ​Primer Coating​ (Optional but recommended):
   • Apply 1-2 coats of PVA primer to porous surfaces. This creates a uniform base for tape adhesion.
2. ​Taping Technique:
   • For horizontal seams: Roll tape from center to edges using a 12″ drywall trowel.
   • Vertical seams: Use a 16″ trowel for better control.
   • Corner details: Pre-fold tape at corners, applying pressure with a putty knife to eliminate air pockets.
3. ​Adhesive Reinforcement:
   • For critical areas (e.g., near pipes), apply mesh tape in a crisscross pattern. Overlap adjacent strips by 2″.

---

Chapter 3: Joint Compound Application

3.1 Layer-by-Layer Buildup

Layer	Tool Used	Thickness	Drying Time	Key Technique
1	6″ Taping Knife	1/16″	4-6 hrs	Feather edges 2″ beyond tape
2	10″ Trowel	1/8″	12 hrs	Vertical passes followed by horizontal
3	14″ Trowel	3/16″	24 hrs	Final smoothing with wet sanding

Pro Tip: Maintain a 5° angle between the knife and wall for optimal compound distribution

7.

3.2 Advanced Finishing Methods

• ​Textured Finishes: Use a hopper gun with joint compound to recreate popcorn or orange peel textures.
• ​Stain Blocking: Apply Zinsser BIN primer over repaired areas to prevent bleed-through from water stains or dents.

---

Chapter 4: Problem-Solving and Troubleshooting

4.1 Common Defects and Solutions

Issue	Cause	Remedy
Tape Visibility	Insufficient mud coverage	Apply 1-2 additional thin coats
Cracking at Edges	Poor adhesion	Remove damaged area, reapply mesh tape
Uneven Texture	Inconsistent knife angle	Practice on scrap material

4.2 Environmental Adaptations

• ​High-Traffic Areas: Install 2 layers of mesh tape with 12-hour curing between coats.
• ​Humid Environments: Use waterproof joint compound (e.g., USG Sheetrock® All Purpose Plus) and allow 48-hour drying between layers.

---

Chapter 5: Maintenance and Longevity

5.1 Post-Installation Care

• ​Touch-Up Schedule:
  • 7 days: Minor sanding and repainting
  • 30 days: Full room inspection for new cracks
  • Annual: Reapply clear sealant to outside corners

5.2 Professional-Grade Tools Investment

Tool	Recommended Brand	Key Feature
Trowel	Marshalltown	Ergonomic handle, rust-resistant blade
Corner Bead	James Hardie	Pre-painted galvanized steel
Joint Tape	3M	Fiber-reinforced edge binding

---

Conclusion

Mastering mesh drywall tape application transforms wall repairs from functional fixes to architectural enhancements. By combining precise technique with quality materials, contractors and DIY enthusiasts alike can achieve flawless finishes resistant to wear and environmental stressors. For specialized applications, consult manufacturer guidelines or professional drywall installers to optimize results.

This guide synthesizes insights from industry standards, manufacturer specifications, and field-tested techniques to provide a comprehensive resource for drywall finishing excellence.
